Regular EPP

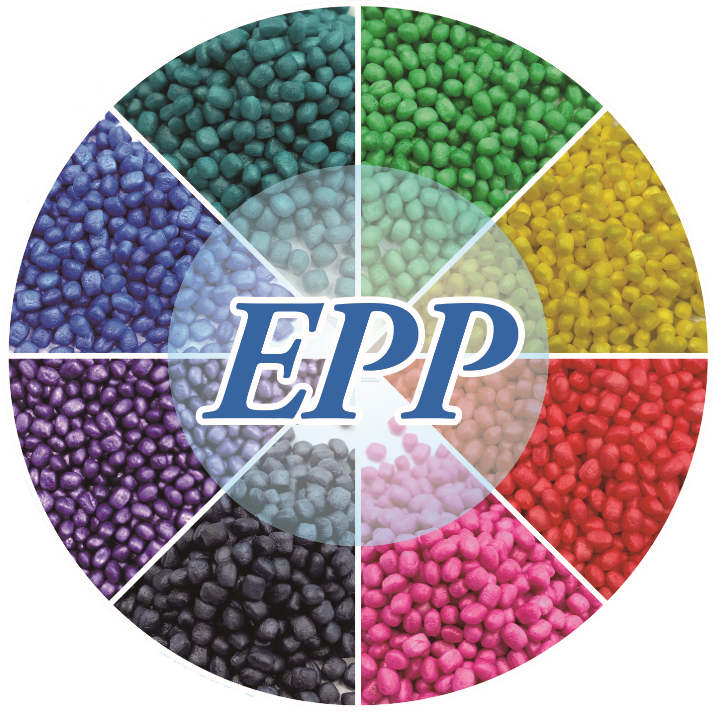

Expanded Polypropylene (EPP) is a highly versatile closed-cell bead foam that provides a unique range of properties.

EPP can be made in a wide range of densities, from 15 to 200 grams per litre, which are transformed by moulding into densities ranging from 18 to 260 grams per litre. Individual beads are fused into final product form by the steamchest moulding process resulting in a strong and lightweight shape.

KEY BENEFITS

100% Recyclable Thermal Insulation Strength Lightweight Impact Absorption

Sound Deadening

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties TEST STANDARD UNIT 20kg/m³±10% 30kg/m³±10% 40kg/m³±10% 50kg/m³±10%
Standards Result Standards Result Standards Result Standards Result
Density ISO 845 kg/m³ 18-22 22 27-33 32.5 36-44 38 45-55 46.2
Tensile Strength ISO 1926 kPa ＞180 296 ＞240 451 ＞300 675 ＞400 571
Tensile Elongation % ＞12% 16 ＞12% 22 ＞10% 14 ＞10% 18
Compression Stress 25% ISO 844 kPa ≥14 82 ≥66 185 ≥142 301 ≥215 343
50% ＞80 157 ＞120 232 ＞180 376 ＞300 399
Compression Set ISO 1856-C % ＜35% 26.23 ＜45% 36.92 ＜45% 37.25 ＜45% 37.51
Flammability GB 8410 mm/min ≤80 78.96 ≤80 62.72 ≤80 51.14 ≤80 43.79
Physical properties TEST STANDARD UNIT 60kg/m³±10% 70kg/m³±10% 80kg/m³±10% 90kg/m³±10%
Standards Result Standards Result Standards Result Standards Result
Density ISO 845 kg/m³ 54-66 60.6 63-77 65.7 72-88 79.5 81-99 85.6
Tensile Strength ISO 1926 kPa ＞450 856 ＞500 961 ＞600 1124 ＞700 1210
Tensile Elongation % ＞10% 25 ＞10% 24 ＞10% 24 ＞10% 24
Compression Stress 25% ISO 844 kPa ≥295 450 ≥381 488 ≥473 591 ≥572 636
50% ＞380 523 ＞450 567 ＞550 986 ＞650 1051
Compression Set ISO 1856-C % ＜45% 37.76 ＜45% 37.98 ＜45% 38.22 ＜45% 38.41
Flammability GB 8410 mm/min ≤80 40.32 ≤80 39.28 ≤80 37.54 ≤80 36.2
Physical properties TEST STANDARD UNIT 120kg/m³±10% 150kg/m³±10% 180kg/m³±10% 200kg/m³±10%
Standards Result Standards Result Standards Result Standards Result
Density ISO 845 kg/m³ 108-132 112.8 135-165 142.37 162-198 165.28 180-220 183.54
Tensile Strength ISO 1926 kPa ＞900 1328 ＞950 1691 ＞1000 2064 ＞1100 2282
Tensile Elongation % ＞8% 28 ＞8% 19 ＞5% 20 ＞5% 21
Compression Stress 25% ISO 844 kPa / 838 / 1158 / 1344 / 1492
50% ＞1000 1221 ＞1500 1808 ＞2100 2355 ＞2500 2773
Compression Set ISO 1856-C % ＜45% 38.87 ＜45% 39.01 ＜45% 39.23 ＜45% 39.56
Flammability GB 8410 mm/min ≤80 34.09 ≤80 30.66 ≤80 29.48 ≤80 27.26

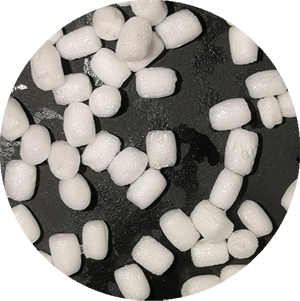

High Rigidity EPP

Under the same density, high-rigidity EPP is harder than regular one , and the comprehensive mechanical properties are better. It is more suitable for package solutions .

KEY BENEFITS

Light weight

High rigidity

Impact absorption

Energy absorption

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties Test method QB15P B15P QB30P B30P
Density/(g/L) / 49 49 25 26
Tensile Strength/kpa GB/T 6344 1273 1030 740 570
Tensile Elongation/% 38 48 36 49
Compression Stress/kpa 10% strain GB/T 8813 375 273 120 74
25% strain 434 322 154 114
50% strain 533 409 225 189
75% strain 887 729 444 449
Shrinkage/% / 2.2-2.4 2.2-2.4 2.2-2.4 2.2-2.4
Molding pressure/bar / 2.6-3.0 2.4-2.6 2.6-3.0 2.4-2.6

Note:The above is the typical value from laboratory.

High Flame Retardant EPP

High flame-retardant EPP has excellent flame-retardant properties and can achieve the function of self-extinguishing from the fire.

KEY BENEFITS

Excellent flame retardant performance: The oxygen index test result can reach more than 30%, and the flame retardant grade can reach more than HF-1 (UL94-2015)

There is little burning smoke and no dripping, which can achieve the effect of self-extinguishing away from the fire, which is safe and environmentally friendly

Excellent thermal insulation performance: thermal conductivity ≤0.033W/(m.k)

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties Test method Products
C82 C83 C84
Density/(g/L) / 42-46(18P) 42-46(18P) 42-46(18P)
Tensile Strength/kpa GB/T 6344 560 554 544
Tensile Elongation/% 27 26 24
Compression Stress/kpa 10% strain GB/T 8813 175 191 167
25% strain 225 213 209
50% strain 303 308 287
75% strain 556 613 513
Oxygen Index/% GB/T 2406.1 24↑ 28↑ 30↑
Flammability rate UL94 HF-1
Thermal Conductivity/W/(m.k) GB/T 10294 0.04 0.04 0.033
Shrinkage/% / 1.8-2.2 1.8-2.2 1.8-2.2
Molding pressure/bar / 2.8↑ 2.8↑ 2.8↑

Note:The above is the typical value from laboratory.

Hollow EPP

Hollow EPP has unique hollow cylindrical structure,and it allows many irregular holes inside the molded part.
While being lighter than regular EPP , it also has excellent air permeability and sound absorption performance.

KEY BENEFITS

Air permeability Sound absorption Lighter: 15%~25% than regular one

High production efficiency: NO pre-pressing, lower moulding pressure

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties Test method Hollow EPP Flame Retardant EPP Regular EPP
Density/(g/L) / 26 26 26
Tensile Strength/kpa GB/T 6344 387 485 420
Tensile Elongation/% 31 36 43
Compression Stress/kpa 10% strain GB/T 8813 117 99 91
25% strain 156 149 120
50% strain 257 217 206
75% strain 491 481 419
Flammability/(mm/min) GB/T 8410 Self-extinguishing in 15s 75-80 85-90
1.0L sample/g / 27 33 32
60mm sample block sound absorption GB/T 18696.2 0.7 0.1 0.1
Molding pressure/bar / 1.8-2.2 2.8-3.2 2.2-2.6

Note:The above is the typical value from laboratory.

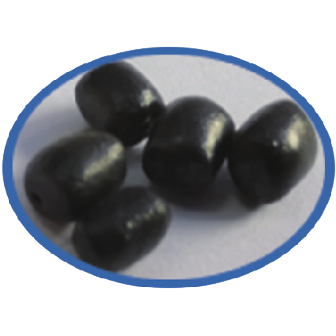

Conductive EPP

With conductive properties: semi-conductive /highly conductive / highly conductive and flame retardant.

KEY BENEFITS

Unique closed cell structure makes its electrical conductivity stable.

Good water resistance, prolongs the service life of conductive materials.

Excellent wear resistance, toughness, impact resistance and temperature resistance.

Self-extinguishing away from the fire.

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties Test method GDH(6) GDH(3) GZDH
15P 30P 15P 15P
Density/(g/L) / 48-53 24-27 50-55 46-50
Tensile Strength/kpa GB/T 6344 600 390 400 271
Tensile Elongation/% 29 29 23 17
Compression Stress/kpa 10% strain GB/T 8813 207 101 126 103
25% strain 265 138 161 137
50% strain 368 207 221 288
75% strain 687 408 440 323
Shrinkage/% / 2.0-2.4 2.4-2.8 2.4-3.0 3.1-3.4
Molding pressure/bar Moulding test 2.4↑ 2.4↑ 3.0↑ 3.0↑
Resistance value/Ω GB/T 6344 106-9 106-9 103-5 103-5
Friction voltage/V SJ/T 10694 ≤100 ≤50
Decay time/S ≤1 ≤0.5
Oxygen Index/% GB/T 2406.2 20 24-26

Note:The above is the typical value from laboratory.

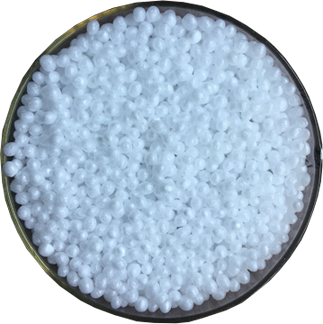

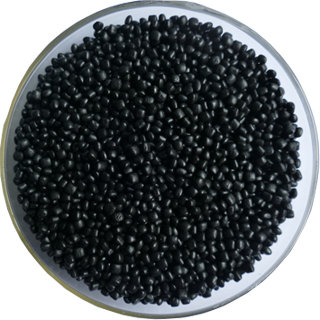

epe

EPE (Expandable Polyethylene) ，We have developed high-rate EPE products to further broaden the application areas of EPE.

KEY BENEFITS

The cell size is uniform and the closed cell rate is high, with extremely excellent resilience.

The colour of the molded part is well-proportioned, and the hand feel is better than EPP.

Environmentally friendly.

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties Test method Products
Density/(g/L) GB/T 6343-2009 37-41（18P） 31-35（25P） 22-25（35P）
Tensile Strength/kpa GB/T 13022-1991 320.29 299.54 288.20
Tensile Elongation/% 55.20 68.53 79.68
Compression Stress 10% strain/kpa GB/T 8813-2008 42.89 40.76 38.62
25% strain/kpa 85.75 73.39 67.25
50% strain/kpa 158.47 139.79 134.21
75% strain/kpa 377.91 358.53 348.46
Shrinkage/% / 2.6-3.2 2.8-3.4 2.8-3.4
Molding pressure/bar Moulding test 0.7-0.9 0.7-0.9 0.7-0.9

Note:The above data is tested by 40cm*36cm*6cm cube.

Bio-based EPP

Bio-based EPP mainly refers to environmentally friendly polypropylene composite foam material based on straw, sugarcane and other lignocellulosic agricultural and forestry wastes other than grain. The application fields involve Industrial turnover, cold chain logistics, electronic and electrical product packaging, civilian leisure and other fields.

KEY BENEFITS

Widely used in the field of disposable packaging that is not conducive to the establishment of a recycling system.

Replace existing foam materials such as EPP and EPS to reduce the consumption of petrochemical resources and reduce environmental pollution.

It has been officially certified by the American BETA laboratory for bio-based materials, with a biological C14 content of 28%.

Can apply for the European green label for Bio-based bio-based materials.

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties TEST STANDARD Biobasd EPP Regular EPP
Color / White White
Bio-based component content/% / ≥20 0
Volatile content/% / 0 0
Density/(g/L) ISO 845 ~50 ~50
Tensile Strength/kpa GB/T 6344-2008 1131 1202
Tensile Elongation/% GB/T 6344-2008 52.4 40.0
Compression Stress/kpa 10% GB/T 8813 198.0 221.7
25% 271.5 300.6
50% 365.2 415.6
75% 791.8 830.3
Shrinkage/% / 1.8-2.2 1.8-2.2
Molding pressure/bar / 2.0-2.4 2.0-2.6

Note:The above is the typical value from laboratory.

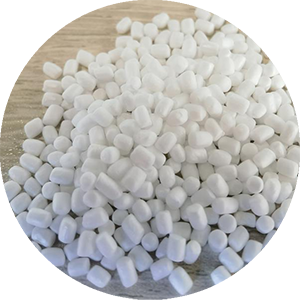

PLA

Polylactide (PLA), is a polyester polymer obtained by polymerization of lactic acid as the main raw material. It is a new type of biodegradable material. Using supercritical CO2 autoclave foaming process to physically foam the modified PLA particles, a degradable E-PLA lightweight material can be obtained.

KEY BENEFITS

Widely used in the field of disposable packaging that is not conducive to the establishment of a recycling system.

Replace EPS foam, reduces the pollution of EPS foam to the environment, and has excellent cushioning and protection performance.

Can apply for full biodegradable certification mark.

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties TEST STANDARD E-PLA Regular EPP
Color / White White
Volatile content/% / 0 0
Density/(g/L) ISO 845 50 50
Compression Stress/kpa 10% GB/T 8813 275 191
25% 336 243
50% 449 343
75% 825 704
Shrinkage/% / 1.0-1.2 1.8-2.0
Water absorption rate/% / ≤2 ≤2
Molding pressure/bar 0.8-1.2 0.8-1.2 2.0-2.6

Note:The above is the typical value from laboratory.

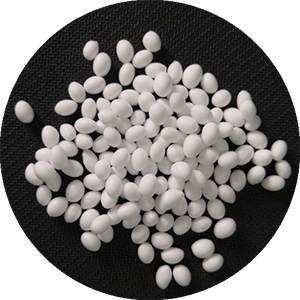

E-TPU

Foamed thermoplastic polyurethane elastomer (E-TPU) is a new type of foam material with excellent performance. E-TPU products are soft, light and breathable, and are currently a new type of material in the field of high-end shoe materials. In addition, it also has very broad application prospects in the fields of shock absorption, packaging, car interiors, sporting goods, children's toys, and thermal insulation. E-TPU is environmentally friendly, fully recycled, which is an extremely excellent Green material.

KEY BENEFITS

High yellowing resistance level.

High resilience.

low molding pressure, low energy consumption.

PRODUCT PHYSICAL PROPERTY TABLE
Physical properties Test method Result
Hardness GB/T 3903.4 邵氏C 30-47
Wearable GB/T 9867 ≤250mm³
Density GB/T 533 0.18-0.27g/cm³
Compression HG/T 2876 ≤30%
Rebound GB/T 1681 ≥60%
Foldable GB/T 3903.1 Passed
Yellowing resistance grade HG/T 3689-2014 A 24H ≥4level
B 3H ≥4level
Tear strength GB/T 1080 ≥4N/mm
Tensile Strength GB/T 6344 ≥1.5MPa
Elongation GB/T 6344 GB/T 6344
